Interchangeable Adapter

  • 5V1A interchangeable USB power adapter
  • 5V1A interchangeable USB power adapter
  • 5V1A interchangeable USB power adapter
  • 5V1A interchangeable USB power adapter
  • 5V1A interchangeable USB power adapter
  • 5V1A interchangeable USB power adapter
5V1A interchangeable USB power adapter 5V1A interchangeable USB power adapter 5V1A interchangeable USB power adapter 5V1A interchangeable USB power adapter 5V1A interchangeable USB power adapter 5V1A interchangeable USB power adapter

5V1A interchangeable USB power adapter

  • Model:JZB-0501000ZU
  • Certificate:CE EAC RCM FCC ROHS
  • Product Size:44.2*39.2*32mm
  • Weight:34g
  • Product description: 5V1A USB power adapter
  • INQUIRY

Product show:

Product details:

Model:JZB-0501000ZU

Input:AC 100-240V  50-60hz

Output:DC 5V1A max:5W.

AC plug type:EU UK US plug.

Color: Black.

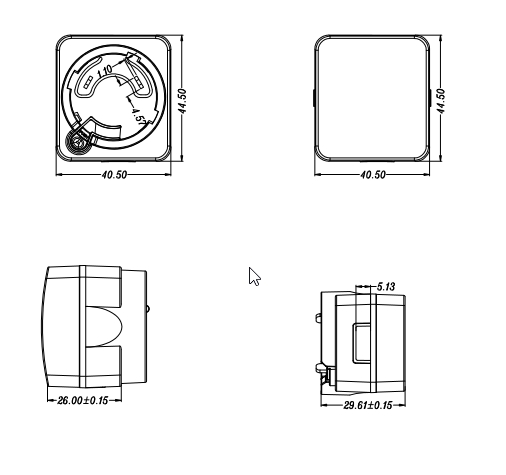

Demension:44.2*39.2*32mm.

Net weight:body:34g.

Warranty:12 months.

Package:

A:PE bag+white box+carton B:Customized packeagee.

Technical Spec:

Hi-pot test:3000V AC 10mA 3S.

Ripple and noise:<120mV at full load with 20MHZ bandwidth.

Turn on delay time:<3s at AC 110V and full load.

Leakage current :<5mA.

Certificate:

CE EAC RCM FCC ROHS.

Safety protection:

Over curren protection

Over voltage protection

Over power protection

Over temperature protection

Over load protection

Short-circuit protection

Environmental Requirements

Operating temperature:-5℃-40℃

Storage temperature:-20℃-60℃

Operating humidity:30%-85%

Storage humidity:10%-95%

Application:

Fit for mobile phone,router,flashlight,desk lamp,breast pump and other small digital products.
