5V3A ul power adapter with dc cable

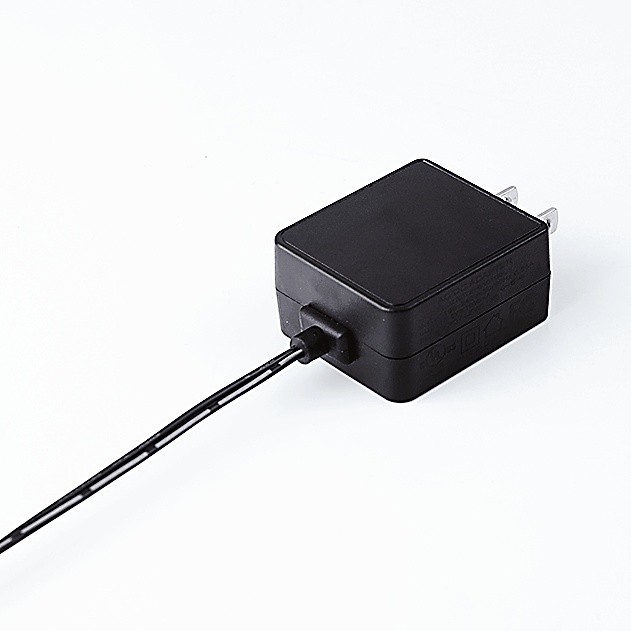

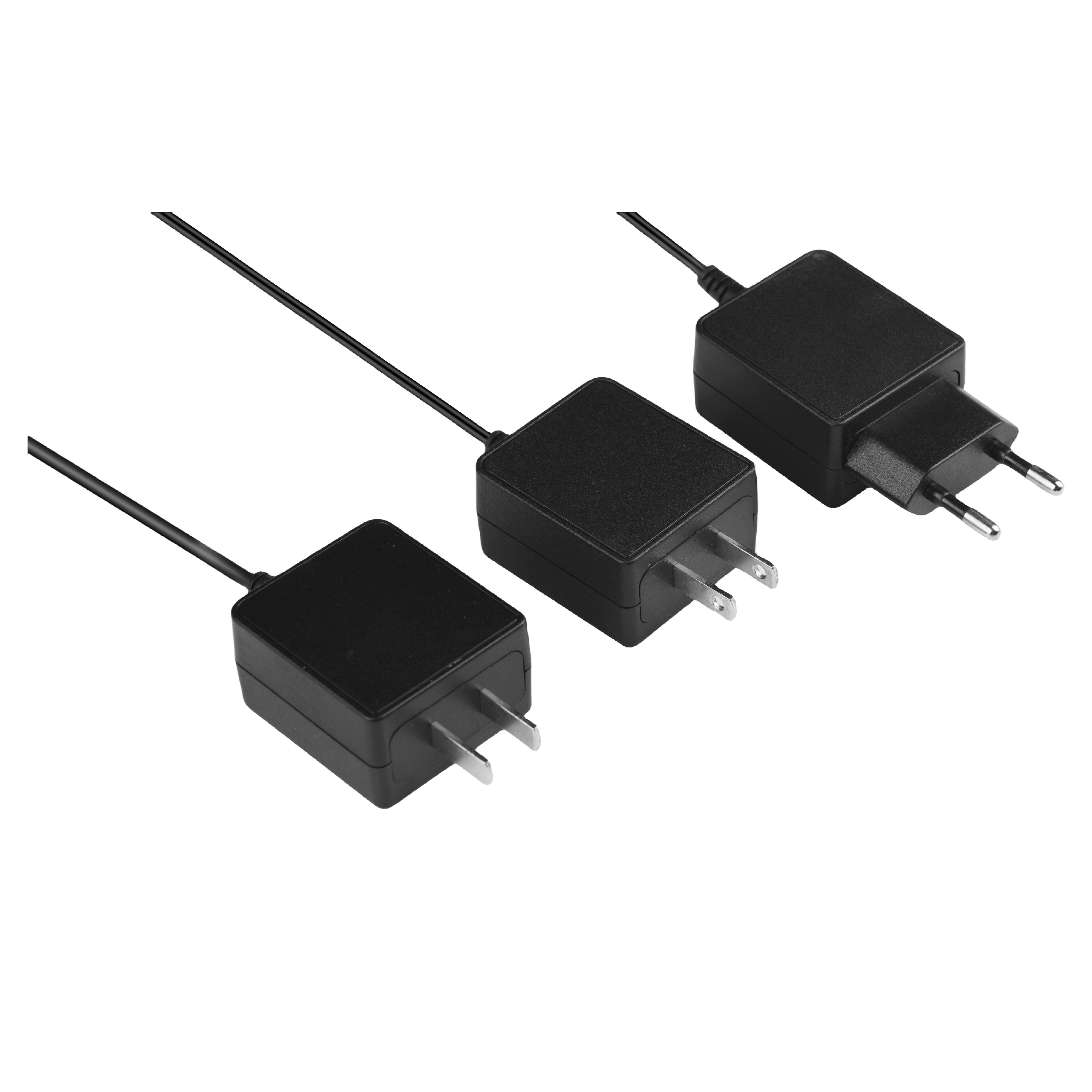

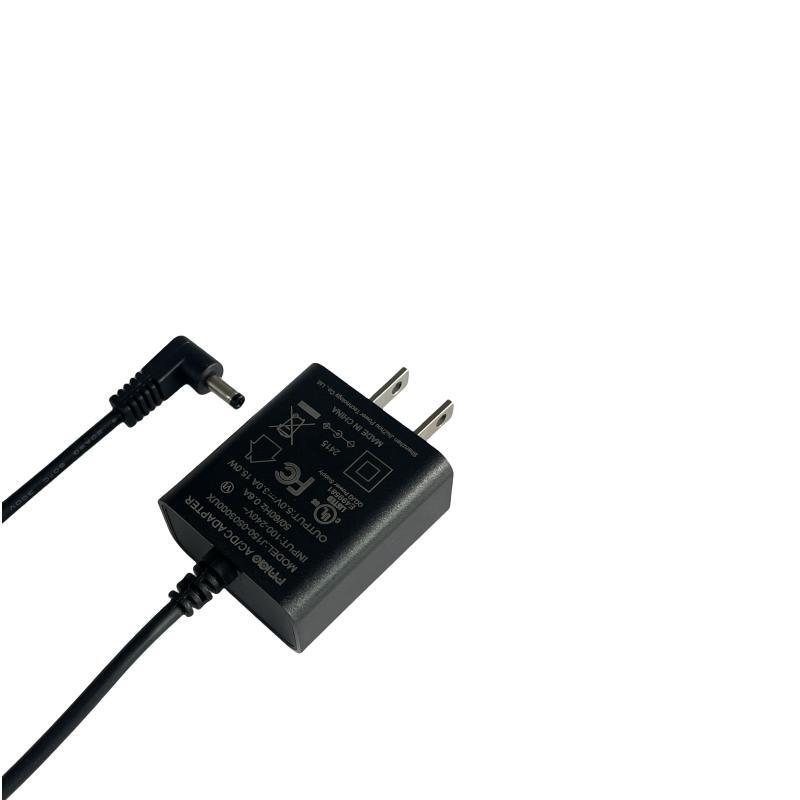

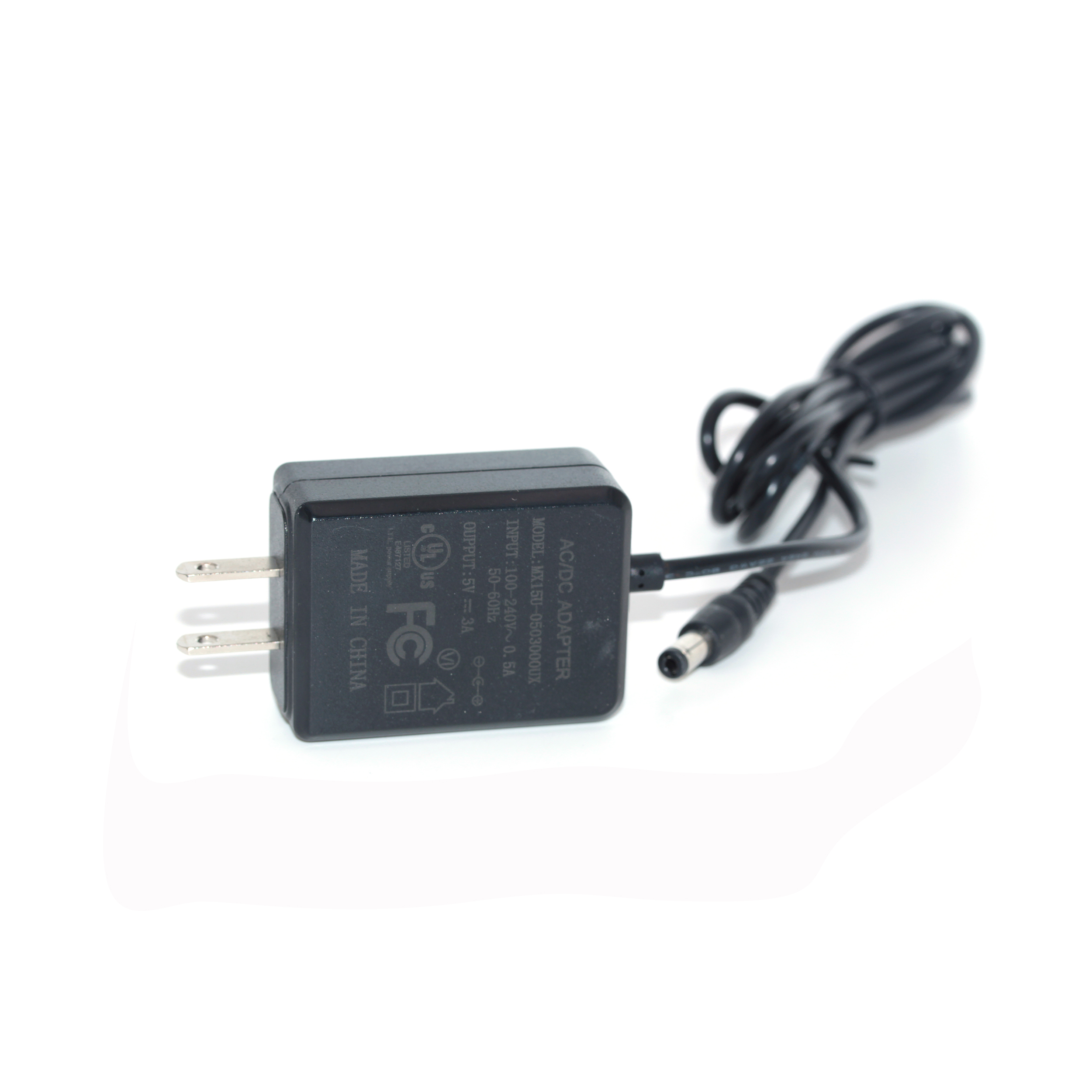

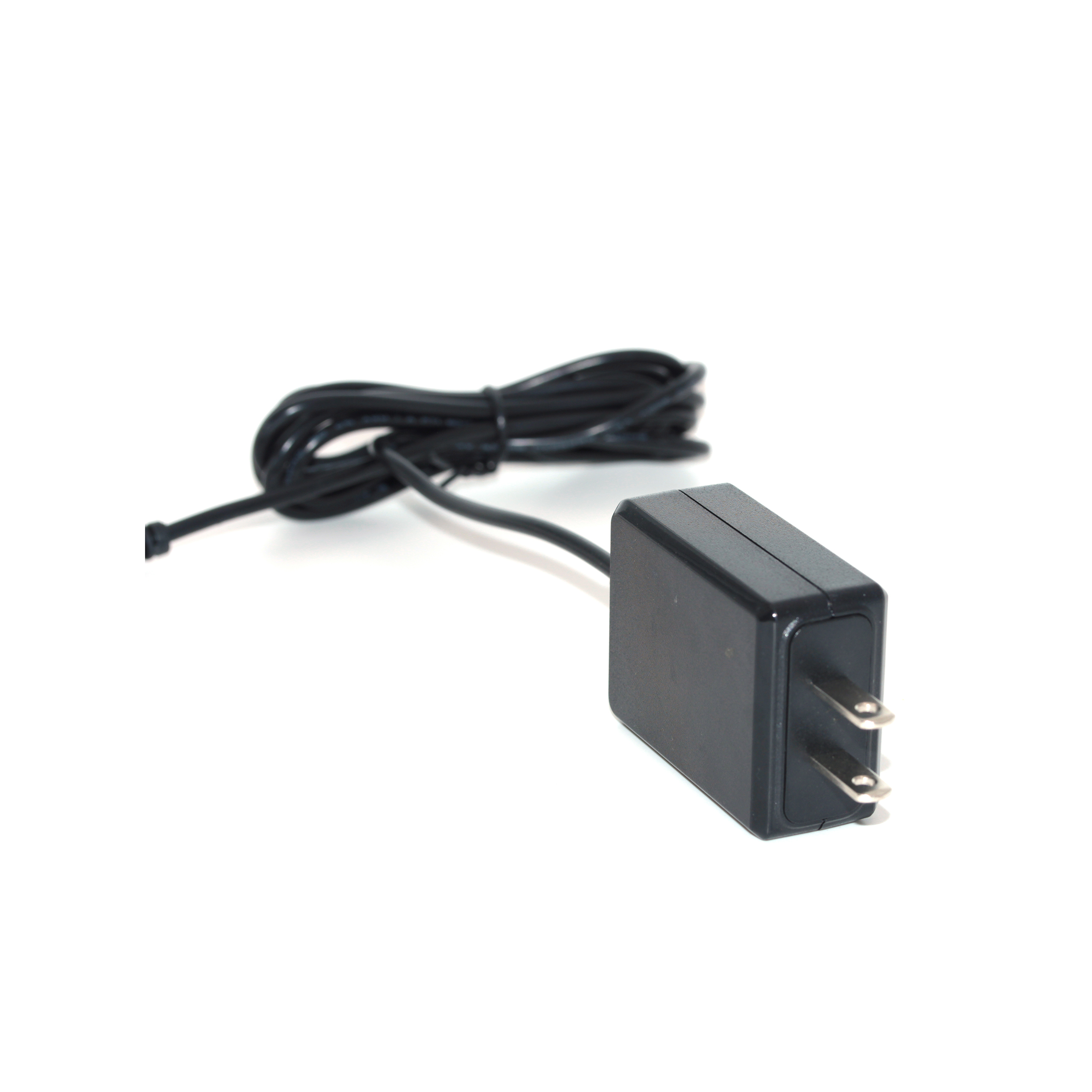

Product show:

Product details:

Model:JZB-M0503000UX

Input:AC 100-240V  50-60hz

Output:DC 5V3A max:15W.

AC plug type: US plug.

color: Black , white.

DC cable length:1M/1.2M/1.5M or can be customized.

DC connector size:5.5*2.5*1.0mm,5.5*2.1*1.0mm or can be customized.

Demension:55*40*24mm.

Net weight:60g.

Warranty:12 months.

Package:

A:PE bag+white box+carton B:Customized package.

Technical Spec:

Hi-pot test:3000V AC 10mA 3S.

Ripple and noise:<120mV at full load with 20MHZ bandwidth.

Turn on delay time:<3s at AC 110V and full load.

Leakage current :<5mA.

Certificate：

CE ROHS Energy efficiency Level VI.

Safety protection:

Over curren protection

Over voltage protection

Over power protection

Over temperature protection

Over load protection

Short-circuit protection

Environmental Requirements

Operating temperature:-5℃-40℃

Storage temperature:-20℃-60℃

Operating humidity:30%-85%

Storage humidity:10%-95%

Application:

Fit for netbook,tablet pc,mobile phones ,Bluetooth earphone and mini Projectors.
