USB Wall Charger

  • 5V3A USB black meguiar charger
  • 5V3A USB black meguiar charger
5V3A USB black meguiar charger5V3A USB black meguiar charger

5V3A USB black meguiar charger

  • Model:J151-050300UU
  • Product parameters: 5v3a
  • Certification :CCC ETL BSMI CE BIS SAA KC PSE
  • Product size:L58.2x W38.7x H26mm
  • Product description: Usb thumb adapter 5v3000ma Black gauge charger
  • INQUIRY


DESCRIPTION:

The S.M.P.S should be capable of a total continuous DC power output of 15W atts.

Product name: 5V3A power adapter charger
Input voltage: 100 v - 240 v 50/60HZ
Output voltage: 5v 3000ma
High pressure test: 3000V AC
Aging load: Input 220V full load aging 2 hours
Appearance size: L58.2x W38.7x H26mm
Yan color: Black and white customizable
Multinational certification: CCC CE GS UL ETL FCC SAA KC PSE


INPUT CHARACTERISTICS:

Input Voltage:

Rated Voltage: 100-240 Vac

Variation Range: 90-264 Vac

Input Frequency:

Rated Frequency: 50-60 Hz.

Variation Frequency: 47-63 Hz

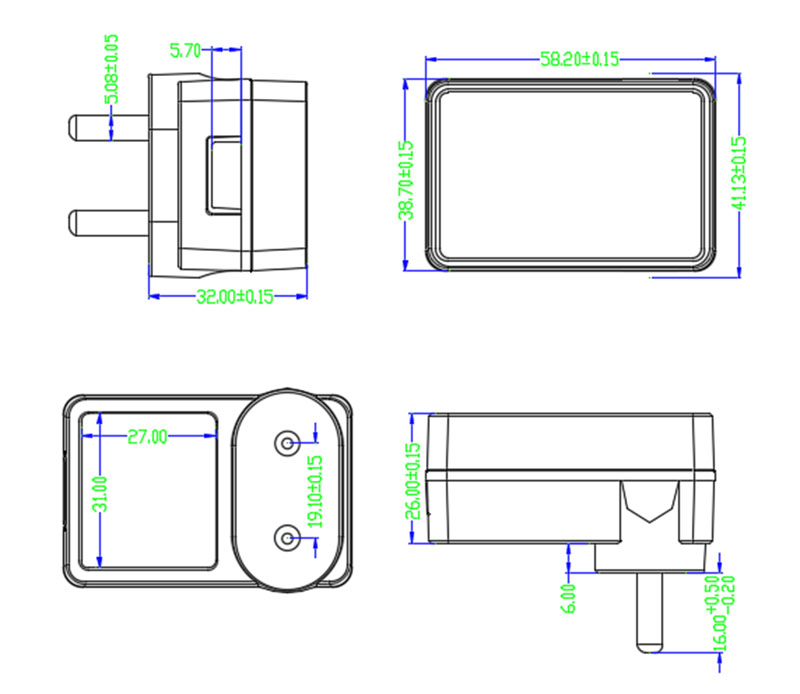

Indian gauge adapter appearance size:


Input Current:

0.6 Amps max At any input voltage and rated, DC output rated load.

Inrush Current:

Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.

Appearance size of multi-country adapter:


Ac Leakage Current:

0.25mA Max.At240Vac input.

Stand-by power consumption0.1 Watts.


Multi-country plug size plan:
