24v5a Desktop power adapter 24v4a5a 12v8a 12v10a power adapter Directly supplied by the manufacturer

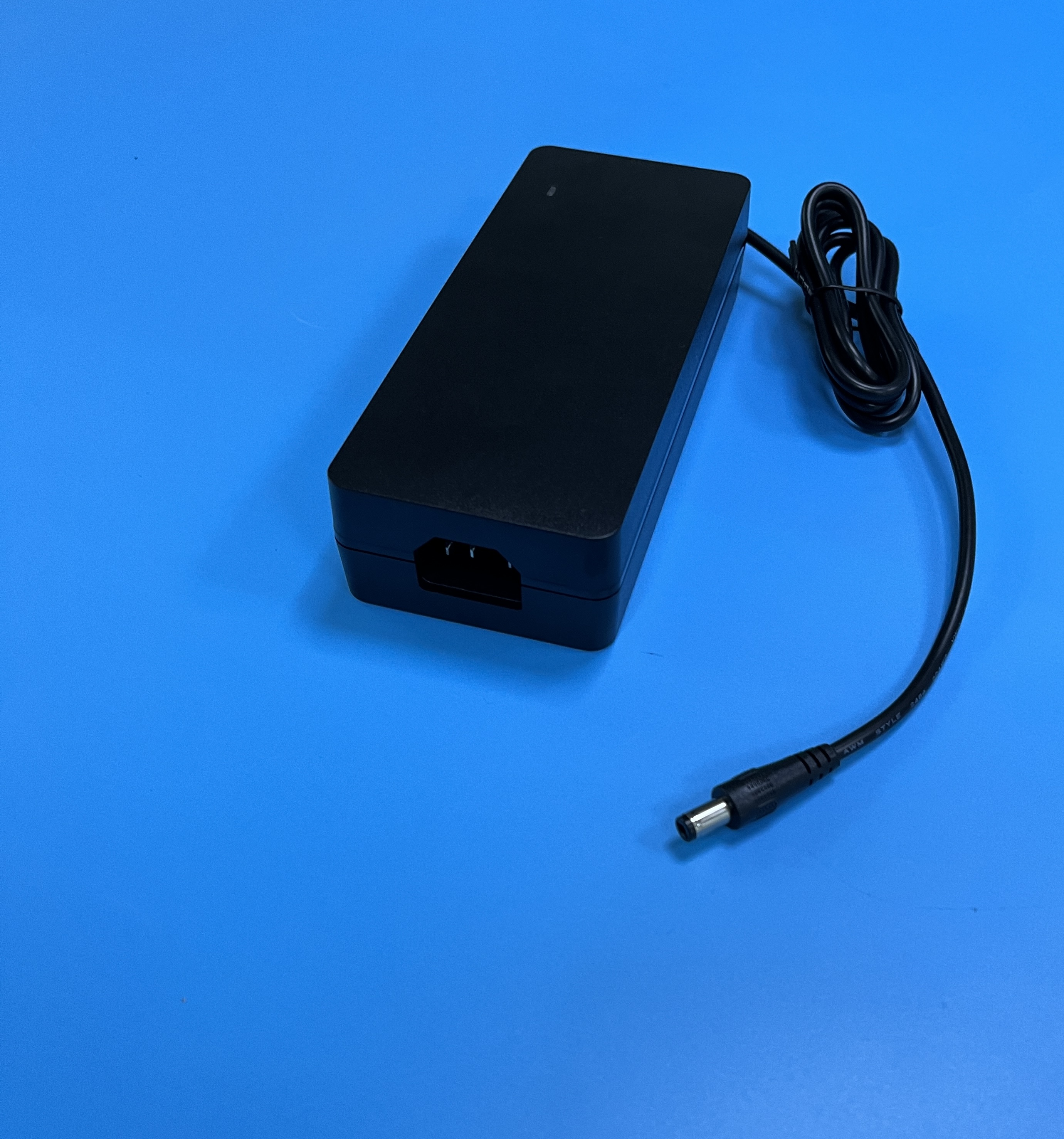

24v5a Switching Power Adapter 120W

Operating temperature range :-29 ℃ TO + 45. 5 ℃.

storage environment temperature range :-40 ℃ TO + 75 ℃.

heat resistance: after the test of the product, placed in 105 ℃ ±3 ℃ high temperature box, after 16 hours, the test, the product must meet 4. 7 items of voltage test requirements, insulation resistance :500VDC no less than 10 M ohm, between input and output, input and housing.

humidity resistance: in the environment temperature of 40 ℃ ± 2 ℃ relative humidity of 90% ~ 95% conditions for 8 hours, take out 10 minutes after the test, the product must meet 4. 7 voltage requirements, insulation resistance: input to output, 500VDC conditions, minimum 10M ohm.

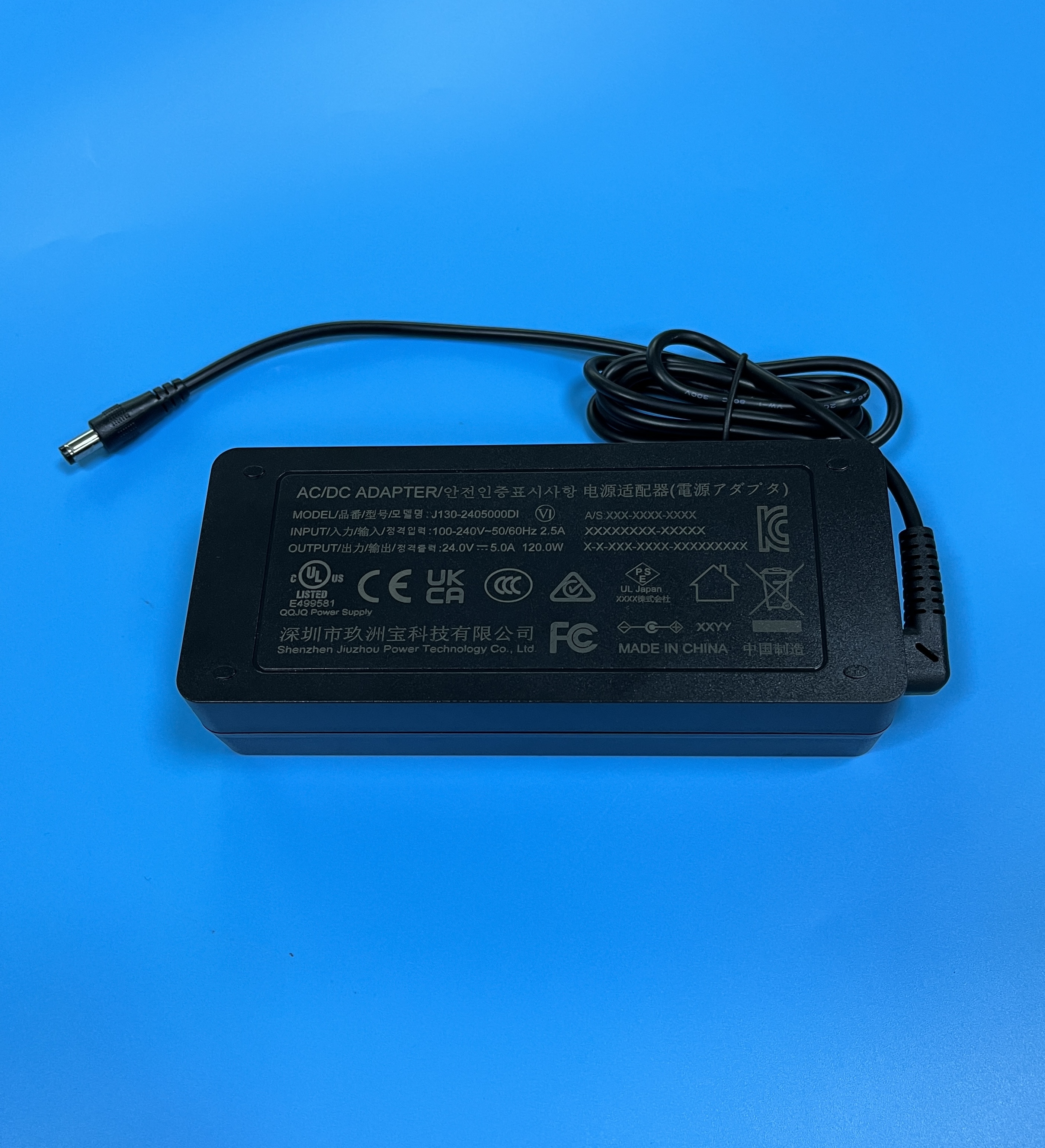

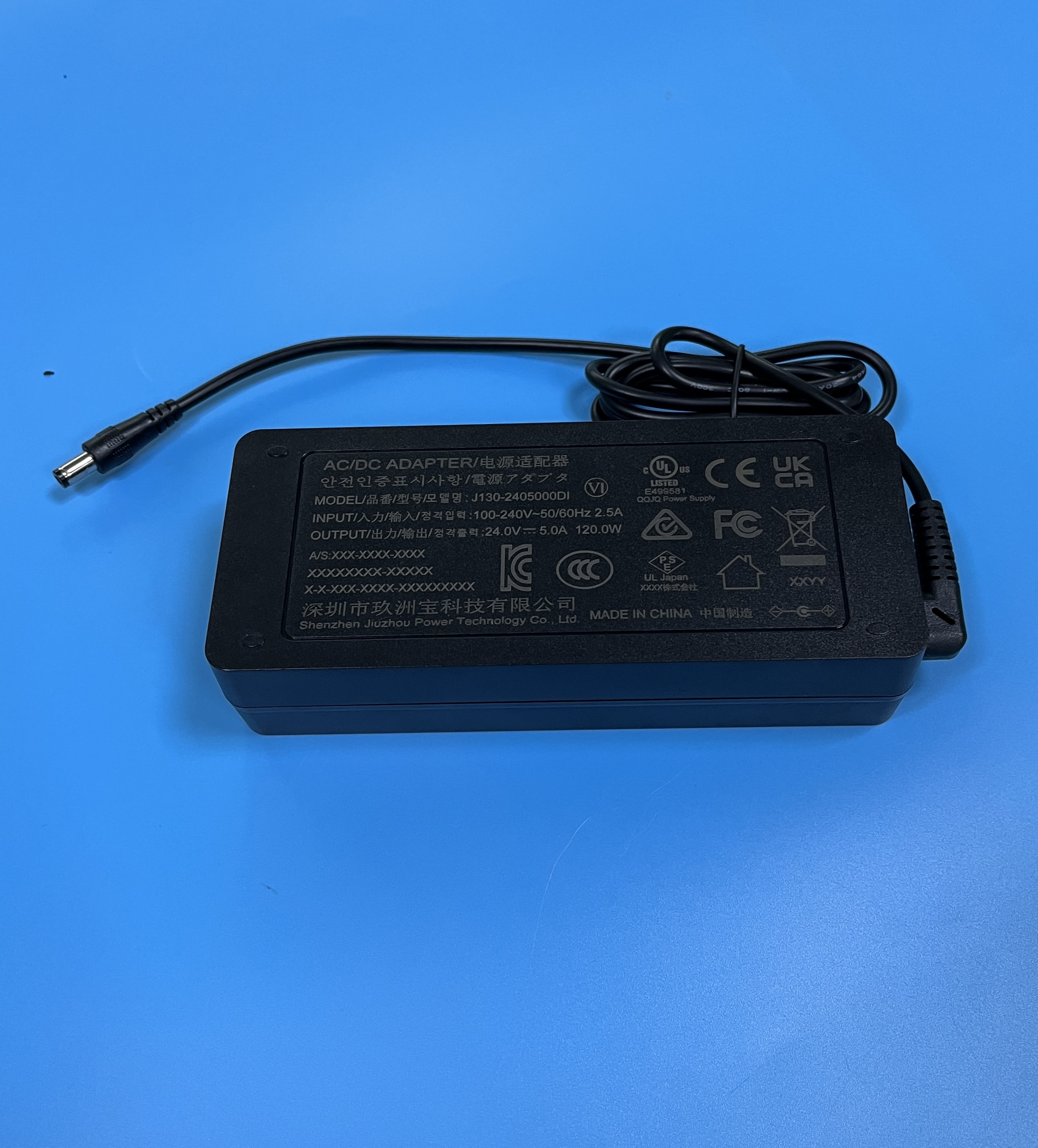

Application of 24V5A switching power supply J130-2405000DI power adapter
Lead-acid batteries, electric toys, humidifiers, air purifiers, motor massage and beauty instruments, security monitoring systems, precision testing and measuring instruments, electronic information products surrounding, printing imaging equipment, audio power amplifier, LED indoor lighting, digital communication appliances, LCD, LED liquid crystal display, LED outdoor lamps and so on.
